Pulsed Laser Deposition
UHV Pulsed Laser Deposition (Laser MBE)

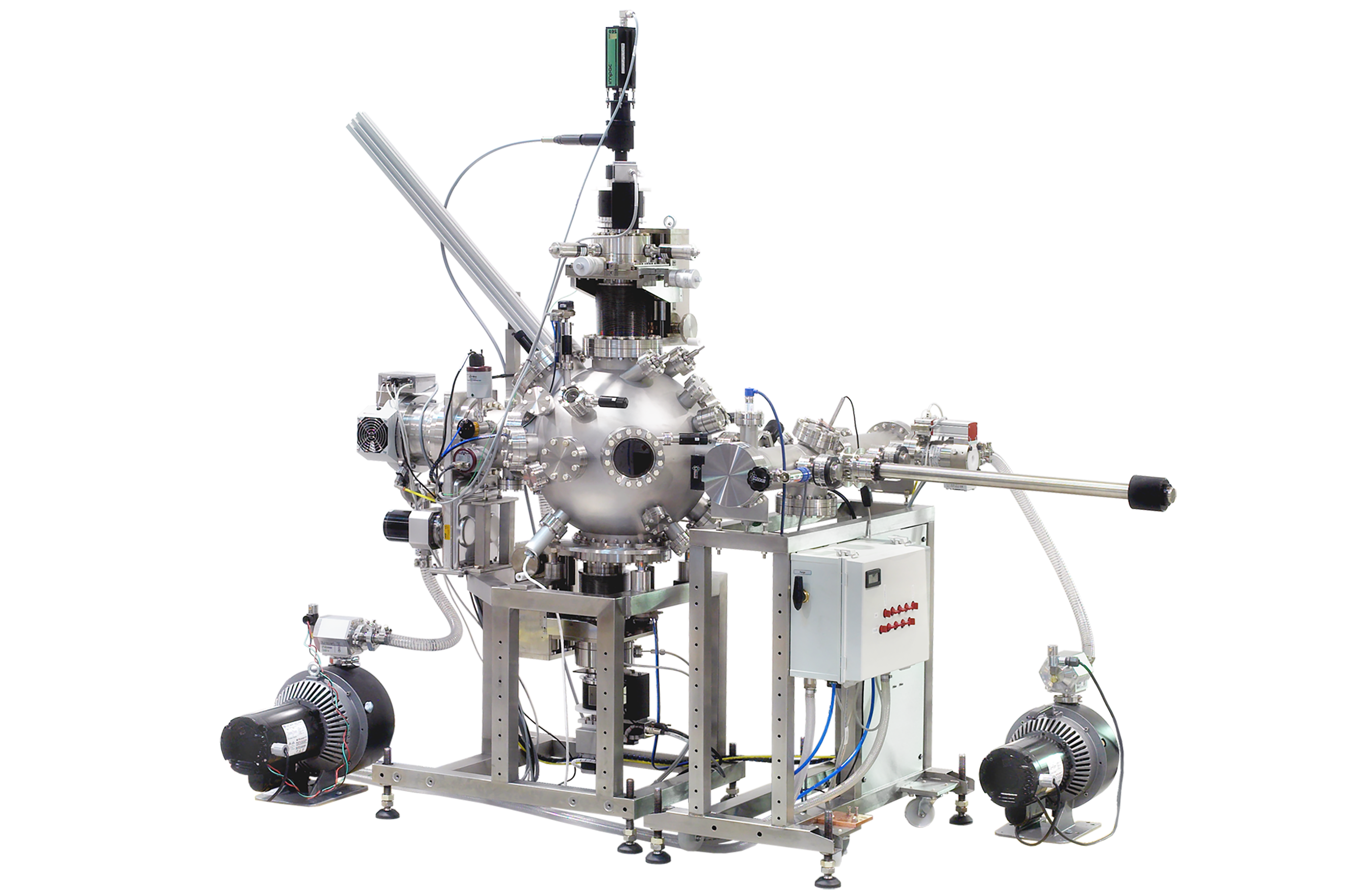

The PLD 500 is an advanced UHV pulsed laser deposition system for epitaxial growth of oxide materials. The system is available in two configurations – target face up or down. Substrates, Targets or Masks (option) are loaded via the same load lock or transfer configuration to make loading both efficient and secure.
To minimise both target costs and downtime, the PLD 500 incorporates a proprietary dual axis oscillating Target Manipulator (TM). During deposition, the target is continuously rotated and simultaneously rocked back and forth. The target rotation and back and forth scanning is programmed in such a way that each area of the target receives the same amount of laser pulses (scan speed slower at the target edges). This guarantees uniform target erosion.
Click to open a larger image
Water-cooled target shield
The TM has a water-cooled target shield to protect the targets during high temperature substrate annealing. Whilst a removeable aperture is mounted as standard to improve film uniformity by collimating the laser plume and removing macroscopic globules of molten material, which may be present in the outer corona of the plume.
The laser beam is typically held in a fixed position to keep the laser spot size unchanged during deposition. But, for experiments requiring a variation in laser spot position, 50mm vertical adjustment is possible as standard. The substrate is heated either using a 1″/25 mm oxygen resistant SiC (1000°C) heater or with a high-power diode laser for 10 x 10 mm substrates.
Features
- 6 x 1″ motorized target holder with target indexing, rotation and scanning.
- Fixed laser position to maintain laser focus.
- Oxygen resistant heater up to 1000°C or Laser Heating Stage.
- Target, Sample and Mask exchange through same load lock chamber.
- High pressure >50 keV RHEED.
- Plume diagnostic ports.
The PLD 500 can be integrated into with any DCA cluster deposition system.
Optimised Laser Path: Schematic of laser beam path to the target and the target to substrate.
Laser Heating: UHV PLD 500 system with target face upwards and a Laser Heating Stage.
Expandable PLD: PLD 500 with Linear Chamber (LBC) or independent load lock.
| Base Pressure: | < 3×10-10 Torr |
| Large cryopanel surrounds internal chamber wall | Steel |
| Use temperature | 100-200 °C |
| Weight | 5-10 Kg |
| Delivery time | 2-3 weeks from order |
| Width | 3114mm |
| Width | 3114mm |
| Width | 3114mm |
| Width | 3114mm |
